ASUS Prime Z790-P-CSM ATX Motherboard
Original price was: ₹30,000.₹22,999Current price is: ₹22,999.
- Supports 12th 13th 14th Intel Core Processor
- Micro ATX Form Factor
- Intel Z790 Chipset
- LGA1700 CPU Socket
- 4 x DDR5 RAM Slots Max Capacity 192GB
TECHNICAL SPECIFICATIONS: ASUS Prime Z790-P-CSM ATX Motherboard
| Model | Prime Z790-P-CSM |
| Chipset | Intel Z790 Chipset |
| CPU Socket | LGA1700 |
| CPU Support | Intel Core 10th Gen i9/ i7 / i5 / i3 Processors Intel Pentium processor and Celeron Processors |
| Memory Support | 4 x DDR5, Maximum Memory Capacity 192GB, Max Memory Support 7200 + OC MHz |
| Storage | 3 x M.2 PCIe 4.0 x 4 slot 4 x SATA 6Gb/s ports |
| USB Ports On Board | 1 x USB 3.2 Gen2x2 Type-C 1 x USB 3.2 Gen2 Type-A 2 x USB 3.2 Gen1 Type-A 4 x USB 2.0 Type-A |
| LAN | 1 x Realtek 2.5Gb Ethernet |
| Audio | Realtek 7.1 HD Audio CODEC |

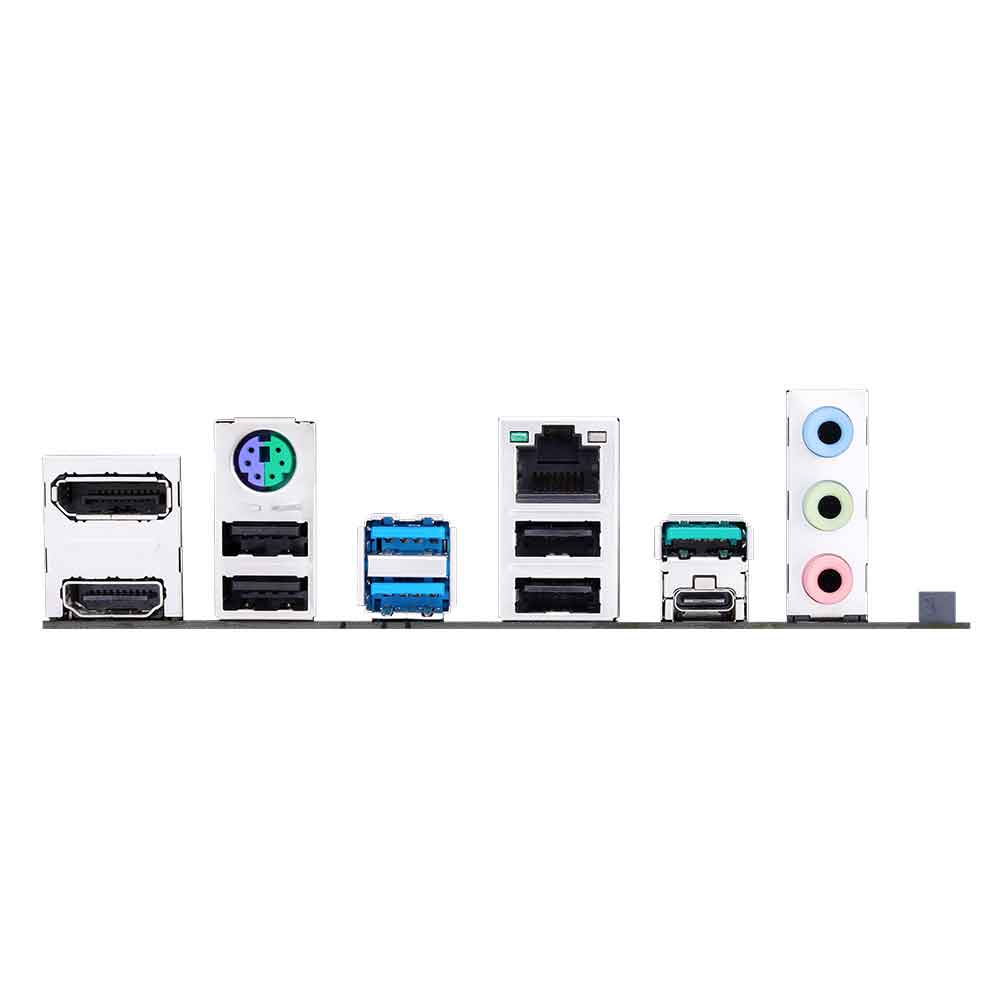

| Back Panel Connectors | 1 x PS/2 Keyboard/Mouse Combo Port 1 x HDMI Port 1 x Display Port 1 x USB 3.2 Gen2x2 Type-C Port 1 x USB 3.2 Gen2 Type-A Port 2 x USB 3.2 Gen1 Type-A port 4 x USB 2.0 Type-A Port 1 x RJ-45 LAN Port 1 x Mic In 1 x Audio Line In 1 x Audio Line Out |
| Internal I/O Connector | 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt (USB4) Header |
| Expansion Slot | 1 x PCIe 4.0 x 16 slot 2 x PCIe 4.0 x 1 slot |
| Built-in Bluetooth | No |
| Built-in WiFi | No |
| Lighting | NA |
| OS Support | Windows 11 64-bit Windows 10 64-bit |
Specification: ASUS Prime Z790-P-CSM ATX Motherboard
|
ASUS Prime Z790-P-CSM ATX Motherboard
Original price was: ₹30,000.₹22,999Current price is: ₹22,999.
